Route Server

Source code on Github.

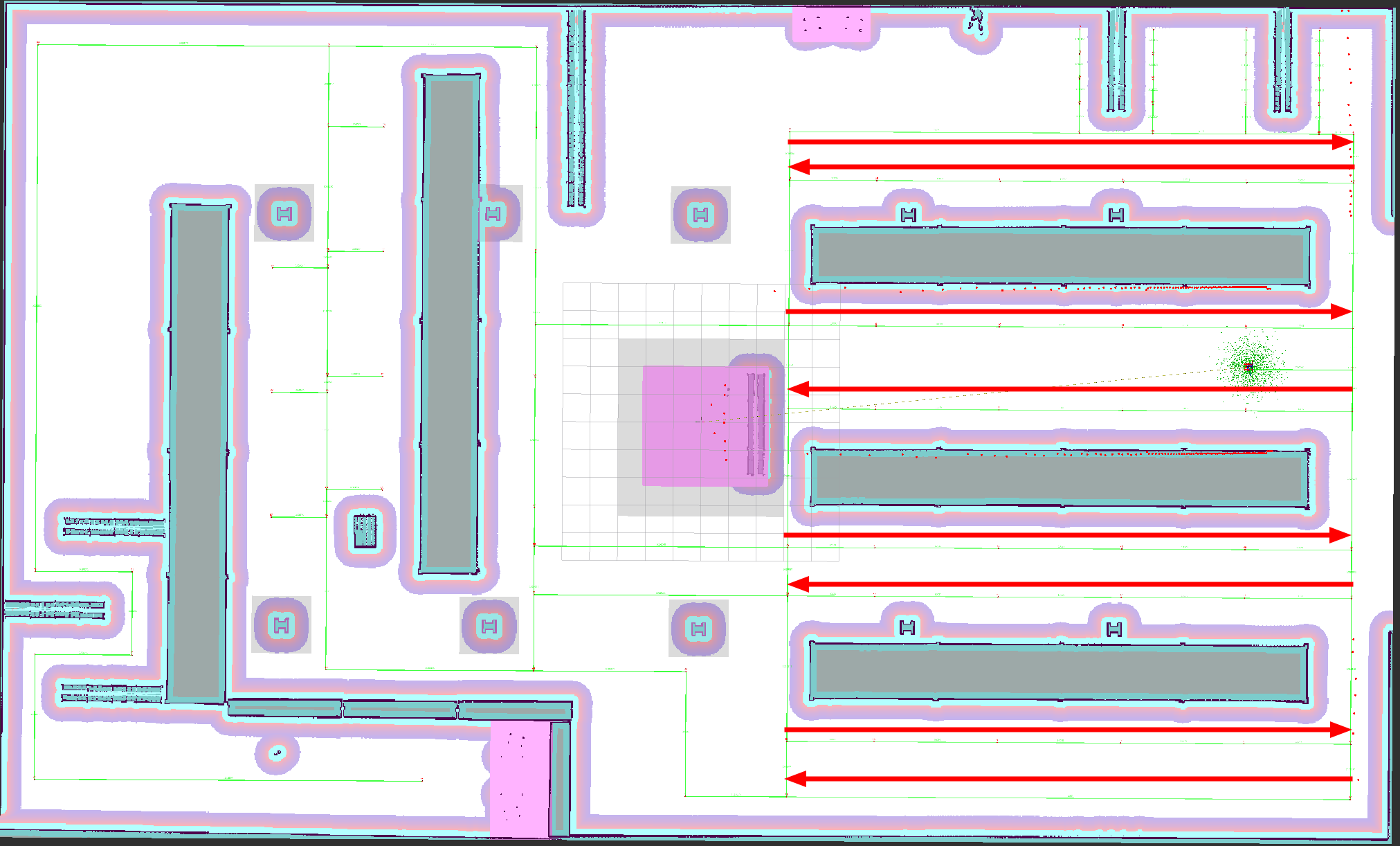

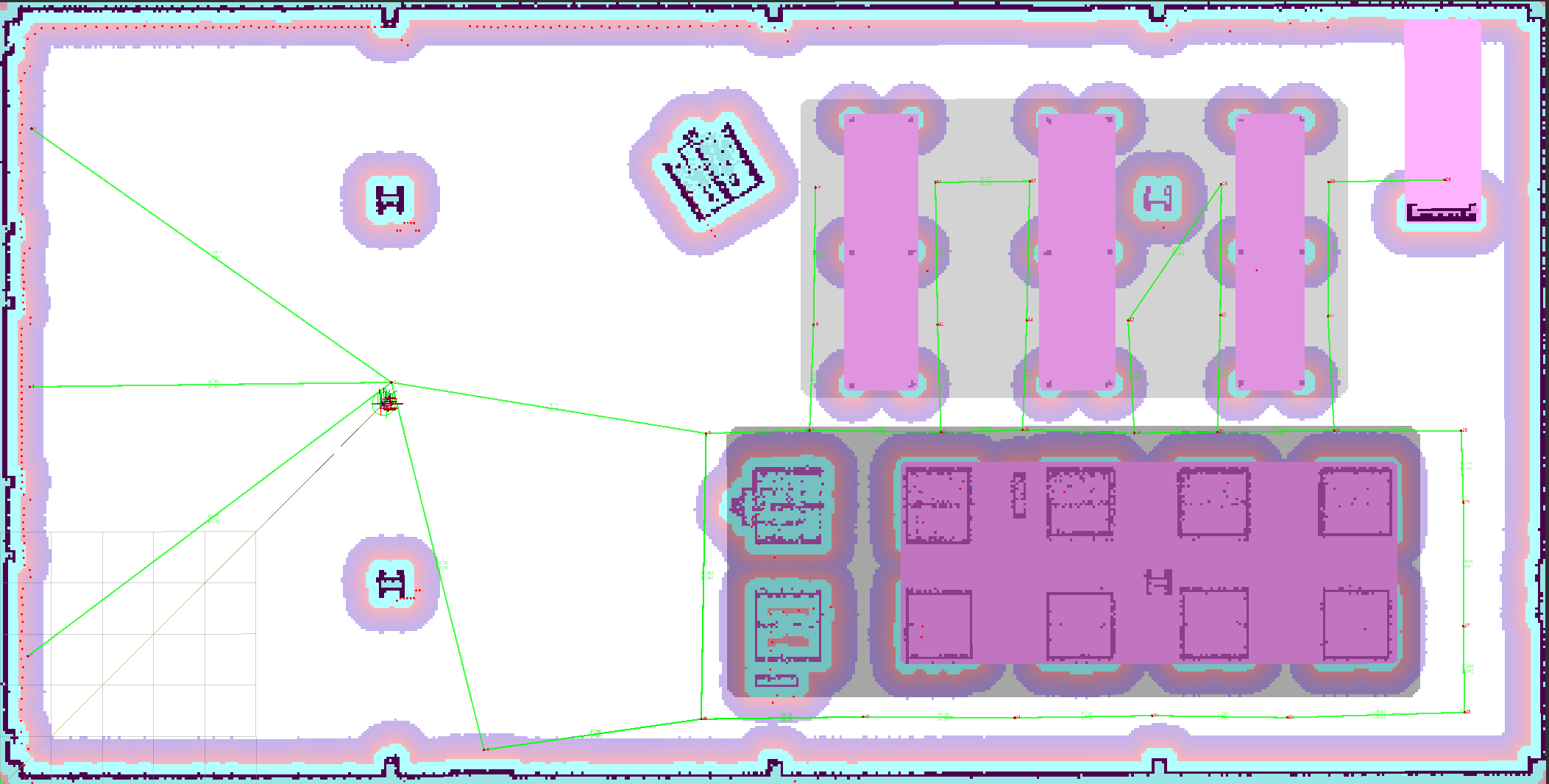

The Route Server in nav2_route implements the server for computing routes through a predefined navigation graph rather than using freespace planning like the Planner Server. It may be used to fully replace freespace planning when following a particular route closely or to augment the global planner with long-distance routing to a goal. In this case, the planner will generate feasible paths with localized environmental information for only the future part of the route necessary.

The graph itself has very few rules associated with it, but may be generated manually or automatically via AI, geometric, or probabilistic techniques. See Route Graph Generation for a tutorial about how to generate a graph using QGIS.

There are also several locations for customization using plugins: * Edge Scorer: Enables custom scoring functions for edges based on arbitrary user-defined semantic information and the chosen optimization criteria(s). * Route Operation: Execute a user-defined action when entering or leaving a route edge or achieving a node, including use of node and edge semantic information, * Route Graph Parser: Parse graph files using the chosen format (e.g. geoJSON, OpenStreetMap, etc.) and convert them into the internal graph representation.

See the package’s README file for additional information such as performance metrics, design, advice, and graph formatting.

Server Parameters

base_frame

Type	Default
string	“base_link”

Description: The base frame of the robot to use to obtain the robot’s pose from when not using the use_start request parameter.

route_frame

Type	Default
string	“map”

Description: The frame of the route graph to plan within. If values in the graph file are not w.r.t. this frame, they will be automatically transformed.

path_density

Type	Default
double	0.05

Description: The density of path-points in the output route, if using the nav_msgs/Path route rather than the collection of nodes and edges. This is used to upsample the route into a path that may be followed.

max_iterations

Type	Default
int	0

Description: The maximum number of planning iterations to perform. If 0, the maximum number of iterations is used.

max_planning_time

Type	Default
double	2.0

Description: The maximum planning time to use.

tracker_update_rate

Type	Default
double	50.0

Description: The update rate of the tracker (when using ComputeAndTrackRoute action) to check the status of path tracking and execute route operations.

aggregate_blocked_ids

Type	Default
bool	false

Description: Whether to aggregate the blocked IDs reported by route operations over the lifespan of the navigation request or only use the currently marked blocked IDs.

boundary_radius_to_achieve_node

Type	Default
double	1.0

Description: The radius at a boundary condition (start, goal) to mark the node achieved by the tracker when using ComputeAndTrackRoute. Note that this is not the same as the goal tolerance, as the route or path follower (controller) will continue to run until its goal tolerance is met.

radius_to_achieve_node

Type	Default
double	1.0

Description: The radius for non-boundary conditions to mark the node as achieved once within tolerance of, when using ComputeAndTrackRoute. Note that this is a radius to consider achievable, however a refinement process takes place to most accurately identify when a node is reached. The radius is the trigger to start this process. Set this generously based on path tracking tolerances.

max_prune_dist_from_edge

Type	Default
double	8.0

Description: Maximum distance from an edge to consider pruning it as in-progress (i.e. if we’re to far away from an edge, it is nonsensical to prune it).

min_prune_dist_from_goal

Type	Default
double	0.15

Description: Minimum distance from the goal node away from the request’s goal pose (if using use_poses) to consider pruning as being passed, in case the goal pose is very close to the goal node, but is not exact.

min_prune_dist_from_start

Type	Default
double	0.1

Description: Minimum distance from the start node away from the start pose (if using use_poses) to consider pruning as being passed, in case the start pose is very close to the start node, but is not exact.

prune_goal

Type	Default
bool	true

Description: Whether pruning the goal node from the route due to it being spatially past the goal pose requested (pose requests only use_poses).

graph_filepath

Type	Default
string	“”

Description: The filepath to the graph file for loading. It may be empty on initialization, but then the graph must be set from the server’s set graph service later.

graph_file_loader

Type	Default
string	“GeoJsonGraphFileLoader”

Description: The name of the graph file loader plugin to use.

graph_file_loader.plugin

Type	Default
string	“nav2_route::GeoJsonGraphFileLoader”

Description: The graph loading plugin to use. By default, we use geojson.

edge_cost_functions

Type	Default
vector<string>	[“DistanceScorer”, “DynamicEdgesScorer”]

Description: Which edge cost functions should be used for planning purposes to score the edges. By default, we optimize for minimum distance while providing a service cost function to set arbitrary costs or mark edge as closed from a service.

operations

Type	Default
vector<string>	[“AdjustSpeedLimit”, “ReroutingService”]

Description: The route operation plugins to use for ComputeAndTrackRoute. By default, we have a speed limit adjuster and a ROS service request rerouting operation.

<name>.plugin

Type	Default
string	“”

Description: The plugin to load under that name. The edge_cost_functions.<name> namespaces is also where plugin-specific parameters are defined.

Edge Scorer Parameters

DistanceScorer

This edge scoring plugin will score based on the length of the edge. If a speed_tag is provided, that is used to scale by the time to traverse. This must be a percentage, if using absolute speed limits, see the TimeScorer plugin below.

weight

Type	Default
double	1.0

Description: Relative edge scoring weighting.

speed_tag

Type	Default
string	“speed_limit”

Description: Graph metadata key to look for percentage speed limits (speed_limit).

TimeScorer

This edge scoring plugin will score based on the time to traverse the length of the edge. This will use the distance of the edge weighted in proportion to the absolute speed limits of the robot over an edge. If none is set in the graph, a parameterized maximum speed will be used. If an actual, measured time of a previous traversal is in the edge’s metadata, this will be used.

weight

Type	Default
double	1.0

Description: Relative edge scoring weighting.

speed_tag

Type	Default
string	“abs_speed_limit”

Description: Graph metadata key to look for absolute speed limits.

time_tag

Type	Default
string	“abs_time_taken”

Description: Graph metadata key to look for abs traversal times.

max_vel

Type	Default
double	0.5

Description: Maximum velocity to use if speed limit or time taken is not set.

PenaltyScorer

This edge scoring plugin will score based on a statically set penalty in the graph file for a particular edge. This can be based on application known logic to weight preferences of navigation tactics in a space.

weight

Type	Default
double	1.0

Description: Relative edge scoring weighting.

penalty_tag

Type	Default
string	“penalty”

Description: Graph metadata key to look for penalty value.

SemanticScorer

This edge scoring plugin will score based on semantic information provided in the graph file. It can either check for the edge’s semantic class via a parameterized key’s value or search all key names to match known semantic classes to apply weight (e.g. class: highway or highway: <some other application info>).

weight

Type	Default
double	1.0

Description: Relative edge scoring weighting.

semantic_classes

Type	Default
vector<string>	[]

Description: The list of semantic classes in your graph that you would like to score based off of.

<for each class>

Type	Default
double	N/A

Description: The cost to assign to this semantic class. For example: highway: 8.4.

semantic_key

Type	Default
string	class

Description: The key to search for edge’s semantic data with the edge’s metadata. If empty string, will look at key names instead.

StartPoseOrientationScorer

This edge scoring plugin will score an edge starting at the start node (vector from start->goal) based on its angular proximity to the starting pose’s orientation. This will either score a weighted-angular distance or reject traversals that are outside of a set threshold to force the route to go down a particular direction (i.e. direction robot is already facing).

orientation_weight

Type	Default
double	1.0

Description: Relative edge scoring weighting.

use_orientation_threshold

Type	Default
bool	false

Description: Whether to use the orientation threshold for binary validity of traversal or weighted-angular distance scoring.

orientation_tolerance

Type	Default
double	PI/2

Description: The angular threshold to reject edges’ angles if greater than this w.r.t. starting pose, when use_orientation_threshold: true.

GoalPoseOrientationScorer

This edge scoring plugin will score a an edge with terminus of the goal node (vector from start->goal) based on its angular proximity to the goal pose’s orientation. This will either score a weighted-angular distance or reject traversals that are outside of a set threshold to force the route to go down a particular direction (i.e. direction robot wants to be facing).

orientation_weight

Type	Default
double	1.0

Description: Relative edge scoring weighting.

use_orientation_threshold

Type	Default
bool	false

Description: Whether to use the orientation threshold for binary validity of traversal or weighted-angular distance scoring.

orientation_tolerance

Type	Default
double	PI/2

Description: The angular threshold to reject edges’ angles if greater than this w.r.t. goal pose, when use_orientation_threshold: true.

DynamicEdgesScorer

This edge scoring plugin will score based on the requested values from a 3rd party application via a service interface. It can set dynamically any cost for any edge and also be used to close and reopen particular edges if they are blocked, in use by other robots locking out its shared use by other robots, higher cost due to overlap with other platforms in service, increased cost due to fleet manager analytics that this space is underperforming throughput, or otherwise temporarily non-traversible. For example, if other robots report an edge to be blocked, all robots can avoid this edge/aisle/etc.

It has no parameters.

Route Operations Parameters

AdjustSpeedLimit

This route operation will check the graph at each state change (e.g. node passed) if the new edge entered contains speed limit restrictions. If so, it will publish those to the speed limit topic to be received by the controller server.

speed_limit_topic

Type	Default
string	speed_limit

Description: The topic to publish new speed limits to.

speed_tag

Type	Default
string	speed_limit

Description: The graph’s semantic metadata key to look for speed limits under.

CollisionMonitor

This route operation will evaluate a future-looking portion of the route for validity w.r.t. collision in the costmap. If it is blocked, it sets the edge blocked as blocked for rerouting around the blocked edge or fail the action based on reroute_on_collision.

costmap_topic

Type	Default
string	“global_costmap/costmap_raw”

Description: The costmap topic to use for collision checking. May be local or global costmap depending on the desired collision checking horizon.

rate

Type	Default
double	1.0

Description: The rate to collision at, rather than the tracker’s update rate since this is an expensive operation.

max_cost

Type	Default
double	253.0

Description: The cost at or above which is considered invalid.

max_collision_dist

Type	Default
double	5.0

Description: The distance (meters) ahead of the robot’s position on the route to collision check during.

check_resolution

Type	Default
int	1

Description: The resolution to check at in terms of multiples of the costmap’s resolution (1 = 1 cell, 2 = every 2 cells, and so on). This reduces the computational complexity for long-range routes.

reroute_on_collision

Type	Default
bool	true

Description: Whether to reroute on collision or exit the tracking task as a failure when future collision is detected.

TimeMarker

This route operation will track times taken to traverse particular edges to write times to for later improved navigation time estimation in edge scoring.

time_tag

Type	Default
string	abs_time_taken

Description: Metadata tag to write the time taken to within an edge. Is used with the TimeScorer to give an improved experiential estimate of traversal times.

ReroutingService

This route operation will receive service requests from a 3rd party application to cause a rerouting request.

TriggerEvent

This route operation will trigger an external service when a graph node or edge contains a route operation of this name. It uses a std_srvs/Trigger interface and is a demonstration of the RouteOperationClient<SrvT> base class which can be used to trigger other events of other types of other names as desired (opening doors, calling elevators, etc).

Example

route_server:
  ros__parameters:

    base_frame: "base_link"                       # Robot's base frame
    route_frame: "map"                            # Global reference frame
    path_density: 0.05                            # Density of points for generating the dense nav_msgs/Path from route (m)
    max_iterations: 0                             # Maximum number of search iterations, if 0, uses maximum possible
    max_planning_time: 2.0                        # Maximum planning time (seconds)

    graph_file_loader: "GeoJsonGraphFileLoader"   # Name of default file loader
      plugin: nav2_route::GeoJsonGraphFileLoader  # file loader plugin to use
    graph_filepath: ""                            # file path to graph to use

    edge_cost_functions: ["DistanceScorer", "DynamicEdgesScorer"]  # Edge scoring cost functions to use
    DistanceScorer:
      plugin: "nav2_route::DistanceScorer"
    DynamicEdgesScorer:
      plugin: "nav2_route::DynamicEdgesScorer"

    operations: ["AdjustSpeedLimit", "ReroutingService"] # Route operations plugins to use
    AdjustSpeedLimit:
      plugin: "nav2_route::AdjustSpeedLimit"
    ReroutingService:
      plugin: "nav2_route::ReroutingService"

    tracker_update_rate: 50.0                     # Rate at which to check the status of path tracking
    aggregate_blocked_ids: false                  # Whether to aggregate the blocked IDs reported by route operations over the lifespan of the navigation request or only use the currently blocked IDs.
    boundary_radius_to_achieve_node: 1.0          # Radius (m) near boundary nodes (e.g. start/end) to enable evaluation of achievement metric
    radius_to_achieve_node: 2.0                   # Radius (m) near route nodes as preliminary condition for evaluation of achievement metric

    max_prune_dist_from_edge: 8.0                       # Max distance from an edge to consider pruning it as in-progress (e.g. if we're too far away from the edge, its nonsensical to prune it)
    min_prune_dist_from_goal: 0.15                      # Min distance from goal node away from goal pose to consider goal node pruning as considering it as being passed (in case goal pose is very close to a goal node, but not exact)
    min_prune_dist_from_start: 0.10                     # Min distance from start node away from start pose to consider start node pruning as considering it as being passed (in case start pose is very close to a start node, but not exact)
    prune_goal: true                              # Whether pruning the goal nodes from the route due to being past the goal pose requested is possible (pose requests only)
