Kilted to L-turtle
Moving from ROS 2 Kilted to L-Turtle, a number of stability improvements were added that we will not specifically address here.
New Nav2 ROS Common & Nav2 Lifecycle Node
Starting in Lyrical, a new package nav2_ros_common was added that contains a set of Nav2, ROS 2 utilities, wrappers, and overrides for working with ROS 2 in Nav2 in a standardized and controllable way.
This ingests previous capabilities from nav2_util like the LifecycleNode and SimpleActionServer, but extends it to wrap all ROS 2 interfaces with Nav2 variants in the nav2:: namespace.
The new nav2::LifecycleNode’s factory members (create_client, create_service, create_publisher, create_subscriber, create_action_server, and create_action_client) now return these Nav2 objects.
This requires some migration of custom plugins, Task Servers, or other components in the Nav2 styling and/or application that wish to use Nav2’s utilities.
Additionally, it contains a set of QoS profiles to be globally used within the stack to give developers complete control over the QoS settings of the system and a one-stop location to update or test different profiles and be applied globally in the stack.
This work is motived by a need to set certain global configurations for interfaces, such as enabling QoS overrides for publishers and subscribers via a run-time parameter and enabling Action and Service introspection.
It also lets us add additional configuration, tracing, advanced features, and wrappers than was previously possible throughout the codebase at large.
The expectation is that all Nav2 nodes and packages use the utilities in this package globally to be consistent and to avoid code duplication.
The lifecycle node includes factories for subscriptions, publishers, clients, and servers that return Nav2 objects in this package rather than the ROS 2 base classes as a level of abstraction of common boilerplate configurations and capabilities.
The factories are listed below:
create_client –> nav2::ServiceClient
create_service –> nav2::ServiceServer
create_publisher –> nav2::Publisher
create_subscriber –> nav2::Subscriber
create_action_server –> nav2::SimpleActionServer
create_action_client –> nav2::ActionClient
A large-scale migration example can be found here.
In most cases, these are very similar to the previous rclcpp version.
If a previous nav2_util version existed, the APIs should be largely the same, except now they should be constructed using the create_* factory rather than manually to make use of the abstracted configuration settings and advanced features to come.
Where changed, it is typically to move the QoS profile specification to the end of the arguments, which is now optional and defaults to the nav2::qos::StandardTopicQoS profile (reliable, volitile, queue depth of 10).
nav2_util::LifecycleNode is now nav2::LifecycleNode, which is largely the same except for the factories and a couple of internal implementation details.
The Service Client, Service Server, and Simple Action Server were also moved to the nav2:: namespace, but they should not be accessed directly. Use the create_* factories from the nav2::LifecycleNode, such as create_action_server or create_action_client.
There are now nav2::qos profiles for QoS to be used in the codebase for homologation and later easier changing: nav2::qos::StandardTopicQoS nav2::qos::LatchedPublisherQoS, nav2::qos::LatchedSubscriberQoS and nav2::qos::SensorDataQoS. These should be used rather than rclcpp profiles.
The APIs for create_* are very similar to the default ones, but slightly different to move the now optional QoS profile specification below required information. When this is not specified the StandardTopicQoS is used (reliable, queue size 10). Only override this if you want another QoS type. Avoid use of SystemDefaultsQoS.
Plugin Migration
All plugins now use nav2::LifecycleNode instead of rclcpp_lifecycle::LifecycleNode or nav2_util::LifecycleNode.
All must be updated to use this new API from planners and controllers to behavior tree nodes.
Similarly, calls to the create_* factories will now point to the Nav2 objects, where applicable.
See above for what those look like and below for a migration from the existing code usage to the new version in order to make use of the new features and API.
Service Client Migration
We no longer need to create the object manually, nor should we as it bypasses the lifecycle node factories that set introspection and other future features.
We can use the node now to do this instead of passing in a node and we don’t need to specify the node type anymore as a template.
All Nav2 servers should use nav2::ServiceClient<T>.
// If using rclcpp::Client<T> from previous create_client factor
main_client_ = node->create_client<SrvT>(main_srv_name_, rclcpp::SystemDefaultsQoS(), callback_group_); // Type rclcpp:Client<T>
// If using nav2_util::ServiceClient<T> manually
main_client_ =
std::make_shared<nav2_util::ServiceClient<SrvT>>(
main_srv_name_,
node,
false /* Does not create and spin an internal executor*/); // Type nav2_util::ServiceClient<T>
To:
main_client_ = node->create_client<SrvT>(main_srv_name_, false /* Does not create and spin an internal executor*/); // Type nav2::ServiceClient<T>
If migrating from the rclcpp::Client<T> factory, check out the nav2::ServiceClient<T> API for its features like invoke() which wraps the async call and spinning for results using the given node or another internal executor.
You may optionally directly migrate by changing calls from async_send_request to async_call and otherwise handle the future in your application code.
It now supports service introspection using the parameter introspection_mode.
Service Server Migration
Services should now use nav2::ServiceServer<T> instead of rclcpp::Service<T> or nav2_util::ServiceServer<T>.
The factory is now available from the node create_service(...), so we can use that to create the service server.
The callback should now include the rmw_request_id_t header now, so we have 3 placeholders rather than 2:
// If using previous create_service factory
service_ = node->create_service<std_srvs::srv::Trigger>(
std::string(node->get_name()) + "/" + getName() + "/reroute",
std::bind(
&ReroutingService::serviceCb, this,
std::placeholders::_1, std::placeholders::_2)); // type rclcpp::Service<T>
// If using nav2_util::ServiceServer<T> manually
service_ = std::make_shared<nav2_util::ServiceServer<std_srvs::srv::Trigger,
std::shared_ptr<rclcpp_lifecycle::LifecycleNode>>>(
std::string(node->get_name()) + "/" + getName() + "/reroute",
node,
std::bind(
&ReroutingService::serviceCb, this,
std::placeholders::_1, std::placeholders::_2, std::placeholders::_3)); // type nav2_util::ServiceServer<T>
To
service_ = node->create_service<std_srvs::srv::Trigger>(
std::string(node->get_name()) + "/" + getName() + "/reroute",
std::bind(&ReroutingService::serviceCb, this,
std::placeholders::_1, std::placeholders::_2, std::placeholders::_3)); // type nav2::ServiceServer<T>
No additional changes should be required since the operations are handled in the same way as before.
It now supports service introspection using the parameter introspection_mode.
Action Server Migration
We can use the factory now from the node and the node is not required as an argument.
This otherwise does not change.
This is analog to the action server but configures with action introspection and other features that are not available in the base rclcpp_action::Server<T>.
compute_and_track_route_server_ = std::make_shared<ComputeAndTrackRouteServer>(
node, "compute_and_track_route",
std::bind(&RouteServer::computeAndTrackRoute, this),
nullptr, std::chrono::milliseconds(500), true); // Type nav2_util::SimpleActionServer<T>
To
compute_and_track_route_server_ = create_action_server<ComputeAndTrackRoute>(
"compute_and_track_route",
std::bind(&RouteServer::computeAndTrackRoute, this),
nullptr, std::chrono::milliseconds(500), true); // Type nav2::SimpleActionServer<T>
No additional changes should be required since the operations are handled in the same way as before.
It now supports action request, feedback, and result introspection using the parameter introspection_mode.
Action Client Migration
We can use the node now to create an action client using create_action_client without providing all the node interfaces.
This is analog to the action client but configures with action introspection and other features that are not available in the base rclcpp_action::Client<T>.
nav_to_pose_client_ = rclcpp_action::create_client<ClientT>(
get_node_base_interface(),
get_node_graph_interface(),
get_node_logging_interface(),
get_node_waitables_interface(),
"navigate_to_pose", callback_group_); // Type rclcpp_action::Client<T>
To
nav_to_pose_client_ = create_action_client<ClientT>(
"navigate_to_pose", callback_group_); // Type nav2::ActionClient<T>
No additional changes should be required since the operations are handled in the same way as before.
It now supports action request, feedback, and result introspection using the parameter introspection_mode.
Publisher Subscriber Migration
To migrate, the order of the arguments in the Subscription must change since the QoS profile is now optional. It is now (topic, callback, QoS) whereas QoS defaults to the StandardTopicQoS, which is the same as rclcpp::QoS for the moment.
Publishers that explicitly specify a QoS profile do not require changes, though if the constructor using depth is used, it must now specify a policy explicitly.
Both are now nav2::Publisher and nav2::Subscription objects that today just typedef the rclcpp and rclcpp_lifecycle versions.
In the future, more features will be added here like lifecycle support for the subscriptions, so its highly recommended as part of this migration to migrate the rclcpp:: to nav2:: as well so those updates are already easily available.
plan_publisher_ = create_publisher<nav_msgs::msg::Path>("plan", 1);
plan_publisher_ = create_publisher<nav_msgs::msg::Path>("plan", rclcpp::QoS(), callback_group);
data_sub_ = node->create_subscription<sensor_msgs::msg::Range>(
source_topic, range_qos,
std::bind(&Range::dataCallback, this, std::placeholders::_1));
To
plan_publisher_ = create_publisher<nav_msgs::msg::Path>("plan"); // No QoS is required if using the StandardTopicQoS, else it can be provided
data_sub_ = node->create_subscription<sensor_msgs::msg::Range>(
source_topic,
std::bind(&Range::dataCallback, this, std::placeholders::_1)); // QoS can be omitted if using StandardTopicQoS, else it can be provided last
No additional changes should be required since the operations are handled in the same way as before.
Now, it supports future extensions for lifecycle subscriptions or additional wrapper APIs for ease of use.
Additionally, it supports QoS override using the parameter allow_parameter_qos_overrides.
Removed Parameter action_server_result_timeout
Removed the parameter action_server_result_timeout from all action servers after resolution within rcl and rclcpp to address early goal removal.
This is not longer required to be set.
Dock Plugin Detector Control
PR #5218 adds on-demand detector control to opennav_docking.
ChargingDock and NonChargingDock now provide pure virtual startDetectionProcess / stopDetectionProcess functions that the docking server invokes around the perception loop.
Custom dock plugins must implement the new hooks (return true if nothing extra is required).
Simple(Non)ChargingDock gained detector_service_name, detector_service_timeout, and subscribe_toggle parameters so a detector service can be triggered only while detections are needed.
See Docking Server for the updated parameter reference and YAML example.

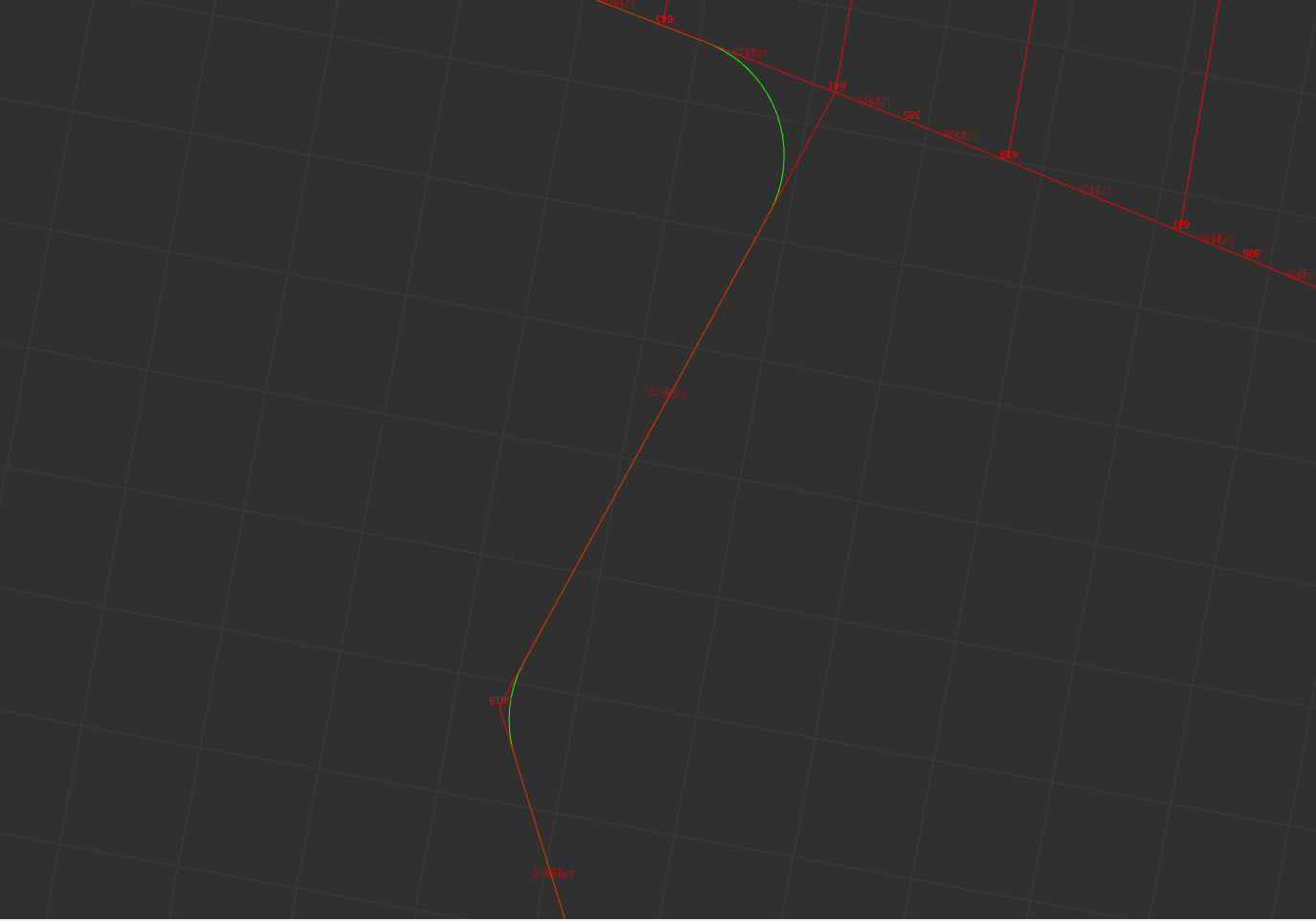

Added Corner Smoothing functionality to route_server
In PR #5226 the ability to stitch two successive edges in route_server with a smooth circular arc has been added. Below is an example of two successive edges forming a corner being smoothed with a radius of one. The red lines are the edges of the route graph and the green line is the resultant path that can be used by a local planner.
New parameters include smooth_corners which enable or disable corner smoothing and smoothing_radius which specifies the radius of the corner to fit to a corner. The tangents of the starting and ending points of the circular arc will match the tangent of the edges that form the corner. In the event that two edges are basically straight, no corner arc is added and regular linear interpolation is done. In addition to that, if the corner arc requires a starting point and ending point that’s longer than the edge lengths, then it will not add a corner arc.
Added NonblockingSequence Control Node
In PR #5325 a new Nav2 specific behavior tree control node has been added. The new behavior tree control node, NonblockingSequence, allows every child node in the sequence to be ticked through even if one of the child node returns RUNNING. This is done to prevent long running child nodes from blocking the sequence.
For additional details regarding the NonblockingSequence please see the Nav2 specific node walkthrough and NonblockingSequence configuration guide.
MPPI Optimal Trajectory Validator Plugin
The MPPI controller now has a plugin, OptimalTrajectoryValidator, which can be used to validate an output trajectory for execution.
This can be used to check for collisions, margin from obstacles, distance from a path, progress being made, etc.
By default, it uses the DefaultOptimalTrajectoryValidator which checks for collisions.
Note that kinematic and dynamic constraints are not required to be checked as the Optimizer ensures these constraints are met.
Added PersistentSequence and PauseResumeController Control Nodes
In PR #5247 two new Nav2 specific behavior tree control nodes have been added.
The PauseResumeController adds services to pause and resume execution of the tree. Related to this, the PersistentSequence control node allows the child index to be exposed to the behavior tree through a bidirectional port. This allows the sequence to be continued on resume where it was paused.
Option to use point_cloud_transport
In PR #5264, option to use point_cloud_transport has been added.
This enables transporting PointClouds using compression libraries (such as Draco, Zstd, Zlib, etc.) to reduce network traffic and work around DDS limitations in low-bandwidth environments.
Default value:
Configuration guide
If your sensor already publishes compressed streams (e.g., Seterolabs ZED X Cameras), you can enable this option in the costmap layers that ingest pointcloud sensor streams (i.e. obstacle, voxel) and in the collision monitor as well.
Example costmap layer configuration:
<costmap_layer>:
observation_sources: pointcloud
pointcloud:
data_type: "PointCloud2"
topic: /intel_realsense_r200_depth/points # Change this to your topic
transport_type: "raw" # Change this to your compressed format (zlib, draco, zstd)
Similarly for the collision monitor config:
collision_monitor:
ros__parameters:
observation_sources: ["pointcloud"]
pointcloud:
type: "pointcloud"
topic: /intel_realsense_r200_depth/points # Change this to your topic
transport_type: "raw" # Change this to your compressed format (zlib, draco, zstd)
See transport_type in Collision Monitor Node for more information.
Private BT Navigator’s BlackBoard ID parameters
The parameters xx_blackboard_id used in the BT navigator to specify the name of the blackboard variables from the
behavior trees were moved into the respective navigators. They now have to be specified under the namespace of the particular navigator.
These parameters are:
<navigate_through_poses_name>.goals_blackboard_id
<navigate_through_poses_name>.path_blackboard_id
<navigate_through_poses_name>.waypoint_statuses_blackboard_id
<coverage_navigator_name>.path_blackboard_id
<coverage_navigator_name>.field_file_blackboard_id
<coverage_navigator_name>.field_polygon_blackboard_id
<coverage_navigator_name>.polygon_frame_blackboard_id
Example:
bt_navigator:
ros__parameters:
other parameters: ....
navigate_to_pose:
plugin: "nav2_bt_navigator::NavigateToPoseNavigator"
enable_groot_monitoring: false
groot_server_port: 1667
goal_blackboard_id: "goal"
path_blackboard_id: "path"
navigate_through_poses:
plugin: "nav2_bt_navigator::NavigateThroughPosesNavigator"
enable_groot_monitoring: false
groot_server_port: 1669
goals_blackboard_id: "goals"
path_blackboard_id: "path"
waypoint_statuses_blackboard_id: "waypoint_statuses"
navigate_complete_coverage:
plugin: "opennav_coverage_navigator/CoverageNavigator"
path_blackboard_id: "path"
field_file_blackboard_id: "field_filepath"
field_polygon_blackboard_id: "field_polygon"
polygon_frame_blackboard_id: "polygon_frame_id"
See also Behavior-Tree Navigator
Add BehaviorTree SubTrees Support
The BehaviorTree engine now supports SubTrees in different files within directory(s) set through bt_search_directories parameter. This allows you to modularize your behavior trees into smaller components that can be reused across different trees.
The interface now supports passing the behavior tree file or ID as input to the loadBehaviorTree method of the BT action server.
Each behavior tree is now strictly required to have its own unique ID, therefore the need to replace MainTre to a unique ID. For example, in navigate_through_poses_w_replanning_and_recovery.xml
` `MainTree can be replaced with NavigateThroughPosesWReplanningAndRecovery.
Option to have custom window size and poly order in Savitsky-Golay Smoother
In PR #5489, option to have custom window size and polynomial order was added.
Previously, the implementation used a fixed window size of 7 and a polynomial order of 3.
Default value:
window_size: 7
poly_order: 3
Vector Objects were Supported for Raster Maps
PR #5479 adds new Vector Object server into nav2_map_server package.
It reads vector objects (polygons and polygonal chains as PolygonObject.msg; and circles as CircleObject.msg) from input parameters, handles them by service calls (AddShapes.srv/GetShapes.srv/RemoveShapes.srv) and finally puts them on output raster OccupancyGrid map.
This map is typically used with costmaps by acting as an input mask for Costmap Filters.
This allows to cover such use-cases as:
adding virtual obstacles on maps, dynamic objects simulation/highlighting, hiding some areas or sticking-out robot parts, sensors noise removal, blacking-out areas on maps, adding keep-out or maximum speed restricted areas on vector basis, synthetic testing purposes, and much more.
To run Vector Object server a new vector_object_server.launch.py launch-file is being supplied.
Navigating with Vector Objects tutorial explains how launch Vector Object server and navigate with vector objects added to raster costmaps.
The information about Vector Object server parameters set-up could be found at Vector Object Server configuration guide.
Toggle collision monitor service and BT plugin
PR #5493 and PR #5532 introduce a new toggle service for the collision monitor.
This service allows enabling or disabling all collision monitor polygons while keeping sensor checks within the collision monitor active.
The service is defined using a new interface, Toggle.srv:
bool enable
---
bool success
string message
This interface can be extended in the future if needed.
A corresponding Behavior Tree (BT) plugin was also created to call this service.
The plugin is based on BtServiceNode and provides the following input ports:
service_name: name of the toggle service
server_timeout: timeout for service calls
enable: boolean flag to enable or disable the collision monitor
An example usage in a Behavior Tree XML file:
<ToggleCollisionMonitor enable="false" service_name="collision_monitor/toggle"/>
Following Server

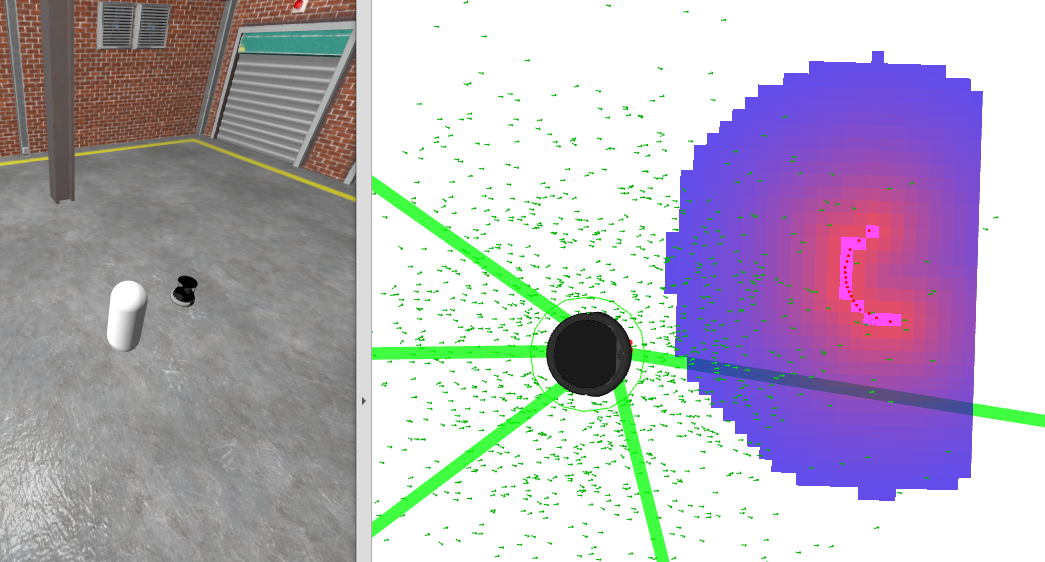

PR #5565 adds a new Following Server into the opennav_following package.
The Following Server implements a server for following dynamic objects or specific reference frames.
This server allows the robot to follow and maintain a determined distance from a detected object or specific frame, using topic-based detection techniques or coordinate frame tracking.
The information about Following Server parameters set-up could be found at Following Server configuration guide.
The tutorial for the Following Server has been recently updated. For the latest instructions and examples, see Dynamic Object Following.
Option for MPPI to use open loop mode
In PR #5617,add new option to have open loop for MPPI.
Now it have 1 more option to use last command velocity for initial state estimation instead of odometry.
Useful when using low accelerations or when wheel odometry’s latency (motor response is poor) causes issues in MPPI initial state estimation.
Default value:
